In the world of construction and civil engineering, safety is always a top priority, especially during excavation work. Working in trenches is one of the most dangerous activities on a construction site, with the risk of cave-ins posing a serious threat to worker safety. To address this, companies rely on an important safety tool known as the trench shoring box. This protective system helps maintain trench stability and allows workers to perform their duties without fear of soil collapse or injury.

As part of the broader excavation shoring methods, the trench shoring box plays a unique role in ensuring worker safety, especially in deep and narrow trench conditions.

What Is a Trench Shoring Box?

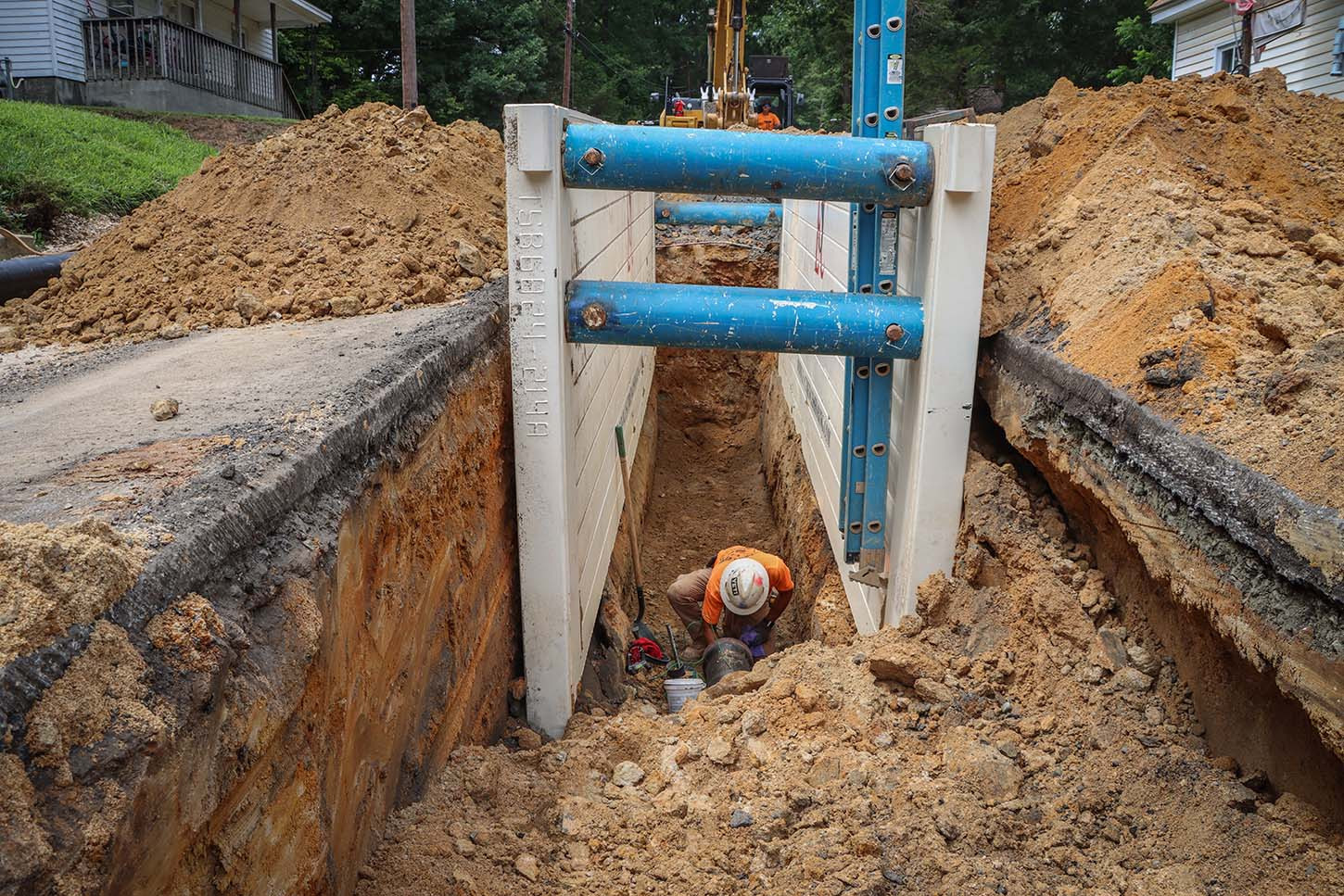

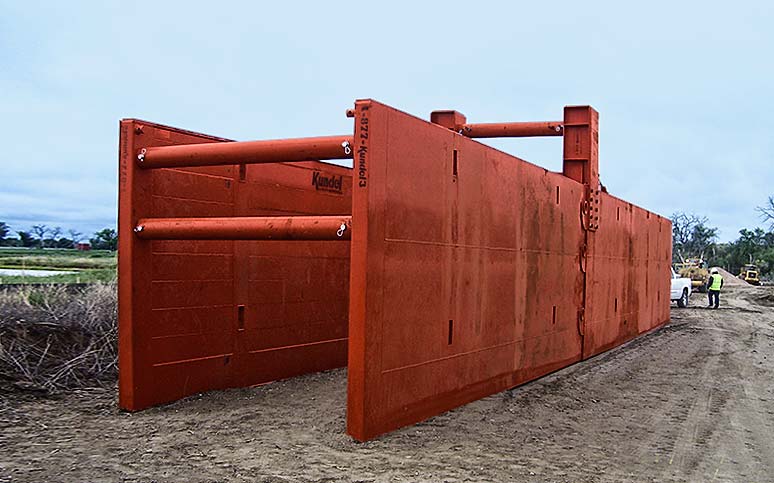

A trench shoring box, sometimes called a trench shield or trench support system, is a robust safety structure used to protect workers in open trenches. It consists of two parallel walls made from steel or aluminum, held apart by horizontal crossbars called spreaders. These boxes are designed to be placed inside a trench to support the walls and prevent them from caving in.

Among various excavation shoring methods, the trench shoring box is widely adopted due to its strength, simplicity, and cost-effectiveness. In many projects, a steel trench box is preferred for its durability and ability to withstand high soil pressure in deep excavations.

Importance of the Trench Shoring Box in Construction

1. Worker Safety

The most critical function of the trench shoring box is to save lives. Trench collapses can occur suddenly and with immense force, often resulting in serious injury or death. The box holds back the surrounding soil, creating a safe zone for workers to operate within.

2. Legal Compliance

In most countries, occupational safety regulations mandate the use of a trench protective system, such as a trench shoring box, for trenches deeper than 1.2 meters (4 feet). Failure to comply can lead to severe penalties, project shutdowns, or fatal accidents.

3. Project Efficiency

Using a trench shoring box allows workers to focus on the task at hand rather than worrying about their safety. This peace of mind leads to faster, more productive work and minimizes delays due to safety incidents.

4. Protecting Infrastructure

Besides safeguarding workers, trench shoring systems help protect nearby roads, pipelines, and buildings from the effects of unstable soil. This is especially important in urban areas or where heavy ground vibrations occur due to equipment.

Types of Trench Shoring Boxes

Depending on the specific project needs, several types of trench shoring boxes are available:

Standard Trench Boxes

General-purpose boxes used in typical excavation jobs, made from steel, durable and suitable for medium to deep trenches.

Lightweight Trench Boxes

Made from aluminum, ideal for shallow excavations or sites with limited equipment access. Easy to transport and assemble.

Adjustable Trench Boxes

Feature adjustable spreaders, allowing the trench width to be modified as needed. Perfect for projects where trench dimensions change along the work zone.

Slide Rail Systems

More complex systems providing support for deep and wide excavations. Installed and removed gradually as the excavation progresses.

How to Use a Trench Shoring Box on Site

1. Excavation Begins: Dig the trench to the required depth while monitoring soil stability.
2. Box Placement: Carefully lower the trench box into the trench using heavy equipment.
3. Adjustment: Set the spreaders to the proper width for secure support.
4. Worker Entry: Once stable, workers can safely enter the trench for installation or repair.
5. Progressive Movement: As work moves forward, the trench box is moved to the next section of the trench.

Practical Applications of Trench Shoring Boxes

• Laying underground water and gas pipelines
• Installing sewage and drainage systems
• Placing electrical and communication cables
• Constructing underground utility vaults or manholes
• Repairing old or damaged infrastructure beneath the ground

Safety Tips for Using Trench Shoring Boxes

• Inspect equipment for cracks, rust, or bent components before use.
• Select the right box based on trench depth, soil type, and expected load.
• Ensure all workers are trained on shoring system operation and emergency procedures.
• Provide safe entry and exit routes with ladders.
• Monitor for hazards such as water accumulation, soil shifts, or nearby vibrations.

Buying or Renting a Trench Shoring Box

Construction companies can either buy or rent trench shoring boxes depending on their needs. Rentals are cost-effective for short-term use, while purchasing is more economical for frequent or long-term projects.

• Required trench dimensions
• Expected soil conditions
• Availability of lifting equipment
• Compliance with safety regulations

AGE Steel: A Trusted Supplier of Trench Shoring Solutions

AGE Steel is a leading provider of high-quality trench shoring box systems in the Middle East. With decades of experience in steel fabrication, they provide steel trench boxes, customized shoring systems for deep excavations, and other excavation shoring methods designed for complex projects.

Conclusion

The trench shoring box is not just another piece of construction equipment—it is a life-saving device that protects workers and ensures the structural integrity of excavation sites. Using proper excavation shoring methods has become both a legal requirement and a moral responsibility. Whether on a small-scale pipe installation or a large urban infrastructure project, a well-selected trench shoring box—especially a durable steel trench box—is the best line of defense against trench collapse and accidents.
